Product Description

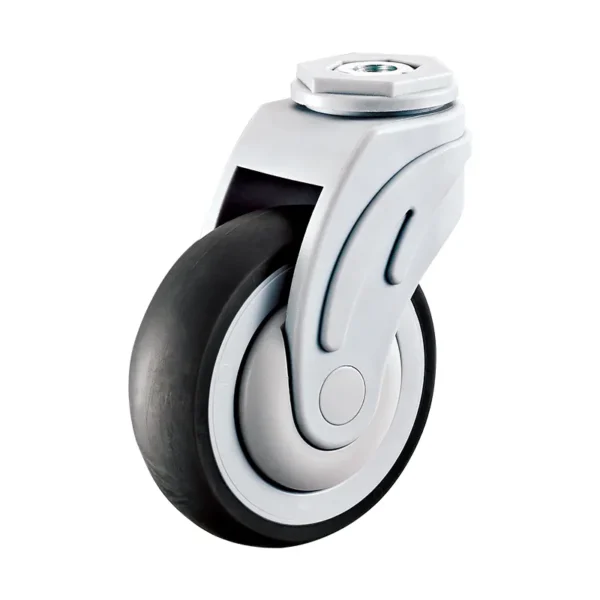

Designed for medical and healthcare applications, the 3-inch Medical Swivel Caster with Nylon Bracket delivers exceptional durability and maneuverability. Its robust PA6 nylon bracket provides strength and corrosion resistance, while the PP wheel core and TPR tire offer quiet, non-marking movement across various floor surfaces, including linoleum, tile, carpet, and concrete. Equipped with precision sealed ball bearings, this caster ensures smooth swiveling and a load capacity of 70 kg per unit. With an overall height of 120 mm and a 13 mm single bolt hole for easy installation, it is ideal for medical equipment, carts, and furniture. Certified to ISO 9001, RoHS compliant, and meeting FDA standards, this caster is built for reliability in demanding environments. It performs consistently in temperatures ranging from -4°F to 158°F (-20°C to 70°C), making it suitable for diverse healthcare settings.
Specifications
| Feature | Specification |
|---|---|
| Caster Type | Swivel |
| Bracket Material | PA6 (Nylon) |
| Wheel Core Material | PP (Polypropylene) |
| Wheel Tire Material | TPR (Thermoplastic Rubber) |
| Wheel Diameter | 3 inches (76 mm) |
| Wheel Width | 32 mm |
| Bearing Type | Precision Sealed Ball Bearing |
| Load Capacity | 70 kg per caster |
| Overall Height | 120 mm |
| Single Bolt Hole Diameter | 13 mm |
| Weight | 0.3 kg per caster |
| Floor Surface Compatibility | Linoleum, Tile, Carpet, Concrete |
| Marking | Non-marking |
| Operating Temperature | -4°F to 158°F (-20°C to 70°C) |
| Certifications | ISO 9001, RoHS, FDA Compliant |
