Product Description

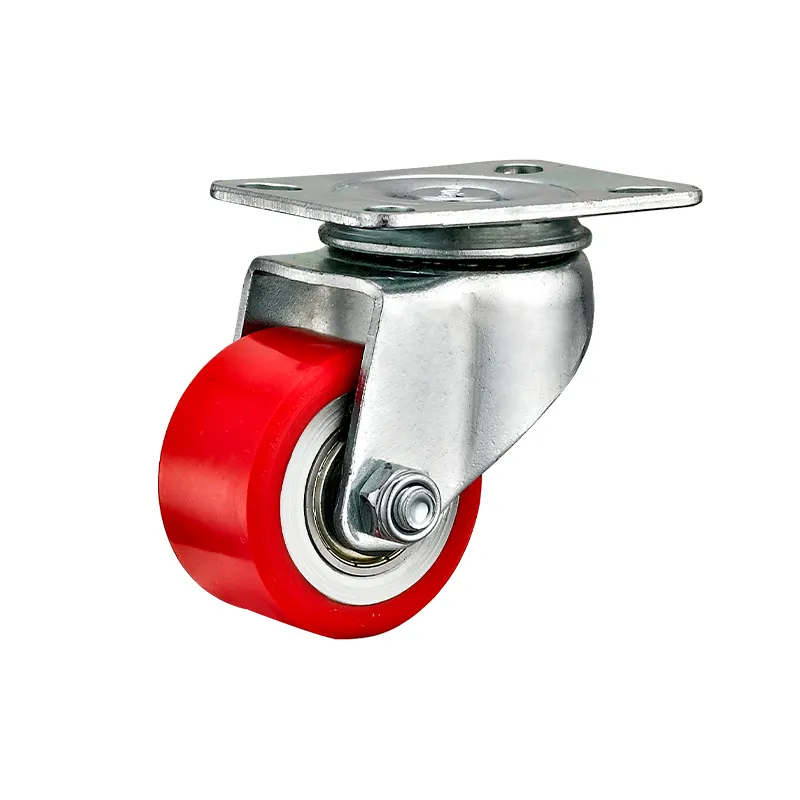

The 2-inch medium duty swivel caster with an iron core red PU wheel is crafted for reliability and versatility across diverse applications. With a robust 180kg load capacity per caster, it’s perfect for heavy-duty tasks in medical facilities, food service kitchens, warehouses, manufacturing plants, and retail environments. The non-marking polyurethane wheel, reinforced by a sturdy iron core, navigates effortlessly over linoleum, ceramic tile, low-pile carpet, concrete, hardwood, and vinyl flooring, protecting surfaces while ensuring stable movement.
Built with a corrosion-resistant zinc-plated steel bracket, this caster performs reliably in indoor and outdoor settings within a temperature range of -20°C to 70°C (-4°F to 158°F). The inclusion of 6001 double ball bearings guarantees low-friction swiveling for precise control and ease of use. Compliant with ISO 9001, RoHS, and industrial caster standards like EN 12531 and ANSI/ICWM, it meets rigorous quality and safety benchmarks.
From transporting medical carts to maneuvering heavy industrial equipment, this caster delivers dependable performance with minimal upkeep. Its compact 75mm height and lightweight 0.51kg design make it suitable for tight spaces, while the 72x54mm top plate with a 55x35mm hole pattern simplifies installation.
Specifications
| Feature | Specification |
|---|---|
| Wheel Diameter | 2 inches (50mm) |
| Wheel Material | Iron Core with Red Polyurethane (PU) |
| Wheel Width | 28mm |
| Load Capacity | 180kg per caster |
| Bearing Type | 6001 Double Ball Bearings |
| Bracket Material | Steel with Zinc-Plated Finish |
| Overall Height | 75mm |
| Top Plate Size | 72x54mm |
| Hole Spacing | 55x35mm |
| Hole Size | 11.5×8.5mm |
| Weight | 0.51kg per caster |
| Floor Compatibility | Linoleum, Tile, Carpet, Concrete, Hardwood, Vinyl |
| Non-Marking | Yes |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Certifications | ISO 9001, RoHS, EN 12531, ANSI/ICWM |
| Applications | Medical Facilities, Food Service, Warehouses, Manufacturing, Retail |
